- PREMIUM CONSTRUCTION: Made from electropolished 316 stainless steel with female-female connections, designed for high-performance industrial applications.
- PRESSURE RATING: Operates at pressures up to 6,000 psi at 200°F temperature, featuring a 0.438-inch orifice size and 4.0 Cv coefficient.
- ADVANCED SEALING: Features stainless steel stems with Fluorocarbon o-ring and PTFE back-up ring below threads for superior leak protection.
- FLOW DESIGN: Incorporates replaceable Acetal seat and straight-through porting for bidirectional flow and easy cleaning access.
- RELIABLE PERFORMANCE: 100% helium leak tested to 1 x 10 ml/s with blow-out proof stem providing secondary seal in full open position.

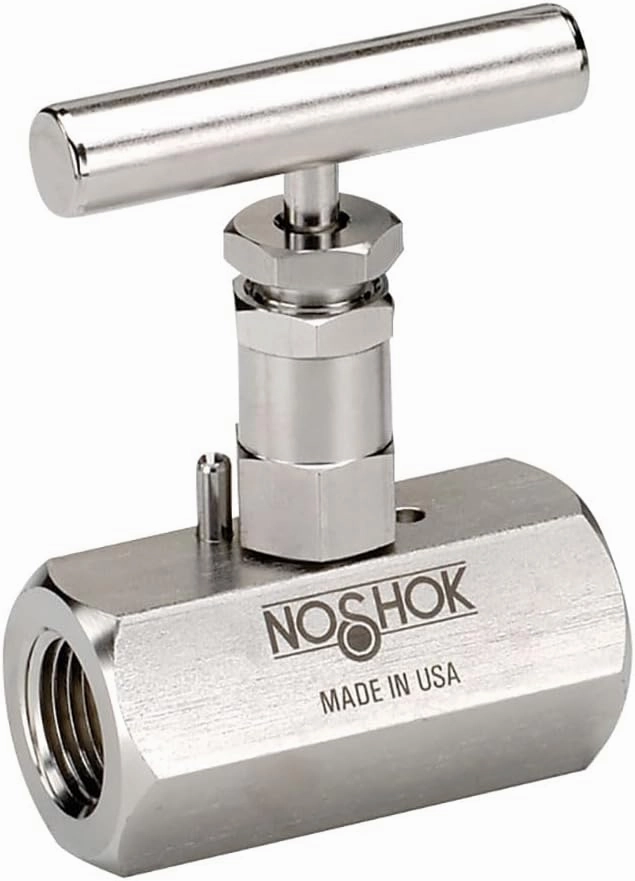

This premium NOSHOK needle valve combines durability with precision engineering. Crafted from electropolished 316 stainless steel, this 1-inch female-to-female valve features a soft seat design and straight-through porting for bidirectional, high-capacity flow. With an impressive pressure rating of 6,000 psi at 200°F and a Cv coefficient of 4.0, it's built to handle demanding applications. The valve incorporates a sophisticated stem seal system, utilizing fluorocarbon o-rings and PTFE back-up rings for reliable performance. The blow-out proof stem provides an additional safety feature with a secondary seal in the fully open position. The replaceable Acetal seat ensures long-term reliability, while the 0.438-inch orifice allows for substantial flow rates. Each valve undergoes rigorous helium leak testing to 1 x 10 ml/s, ensuring exceptional performance. Backed by a 3-year warranty, this 508-FFS model exemplifies industrial-grade quality in fluid control solutions.
