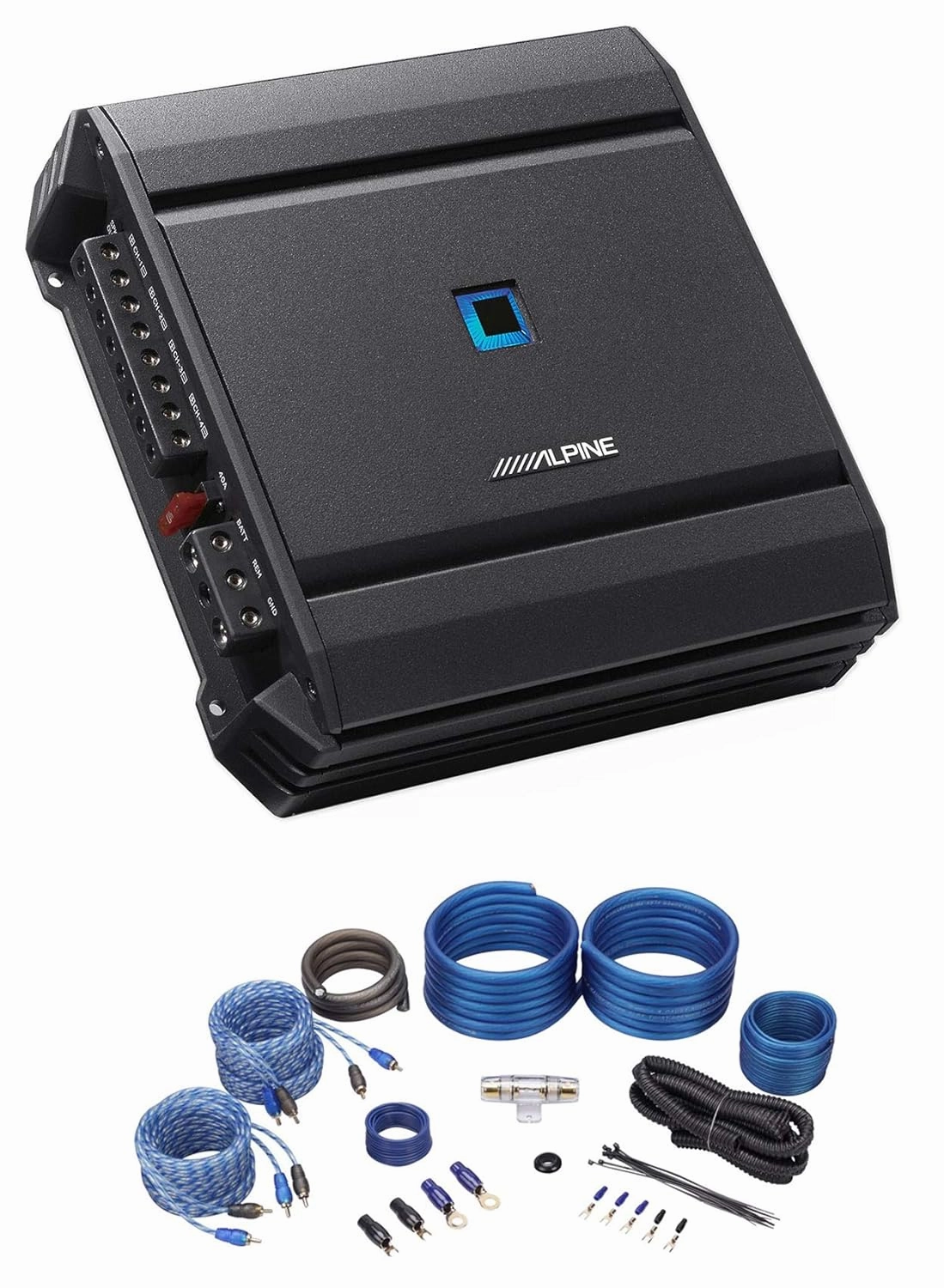

- (1) Alpine S-A32F 320 Watt RMS 4-Channel S-Series Car Audio Amplifier Class D Amp. (1)RockvilIe RWK42 4 Gauge 4 Chan Car Amp Wiring Installation Wire Kit (2) RCA's. Install. Terminal Layout: One side. Small footprint for easy installation. Screw terminals (for speaker and power cables). General. Amplifier Type: Class-D (Digital). Channel Design: 4/3/2 Channel. Thermal Management Control. Top Mounted LED Power/Status Indicator. Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF). Gain Control: Adjustable. Bass Control: Remote Bass Control (RUX-KNOB2) Ready. Max Power Output Ratings. Total Max Power: 640W. RMS Power Ratings. Per Channel into 2 Ohms, 14.4V (%THD N): 4 x 80W. Per Channel into 4 Ohms, 14.4V (%THD N): 4 x 55W. Bridged into 4 Ohms, 14.4V (%THD N): 2 x 160W. Sound Tuning. Crossover: Variable LPF, 50-400Hz (-12dB/oct ). Crossover: Variable HPF, 50-400Hz (-12dB/oct ). General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable). Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V. High Level Input with automatic power on. Cable size: Power Cable AWG 8, SPK Cable AWG 10. Frequency Response ( 0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 30kHz. THD N (@ 10W into 4 ohms): <0.03%. THD N (@ 50W into 4 ohms): <0.08%. Damping Factor:>100. Signal to Noise (@ 50 Watts into 4 Ohms):>98dB. Weight: 1.9 kg. Dimensions. (W x H x D): 8" x 8" x 2.25". Features:
- RockvilIe RWK42 4 Gauge 4 Channel Car Amplifier Wiring Installation Kit. (2) 17 High Grade Twisted Pair of 100% Copper RCA Cable. 17 4 Gauge Translucent Blue SuperFlex Power Cables. 17 18 Gauge Blue Remote Cable. 17 16 Gauge Clear Speaker Wire. 3 4 Gauge Clear SuperFlex Ground Wire. Gold Plated AGU Heat Resistant Fuse Holder. 80 Amp AGU Gold Plated Fuse. 7 Split Tube Loom. Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets
- Soft abrasion proof insulating jacket allows for 100% improved flexibility. PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F
Alpine S2-A36F 320 Watt RMS 4-Channel S-Series Car Audio Amplifier Class D Amp. 4 Gauge 4 Chan Car Amp Wiring Installation Wire Kit (2) RCA's. Install. Terminal Layout: One side. Small footprint for easy installation. Screw terminals (for speaker and power cables). General. Amplifier Type: Class-D (Digital). Channel Design: 4/3/2 Channel. Thermal Management Control. Top Mounted LED Power/Status Indicator. Speaker Level Input with remote turn on
Alpine introduces the all-new S-Series amplifiers - a perfect match to the S-Series speakers. These amps have an excellent Watts-per-Euro ratio in the Class-D category, feature a very high heat resistance, and won't shut down due to overheating. They also feature excellent sound quality in their price range. The Absolute KIT4 Amp kit has the following differences over other amp kits on the market at this price point.
- Package Dimensions : 10.2 x 9.7 x 3.8 inches; 0.01 ounces
- Date First Available : June 10, 2019
- Manufacturer : Alpine
