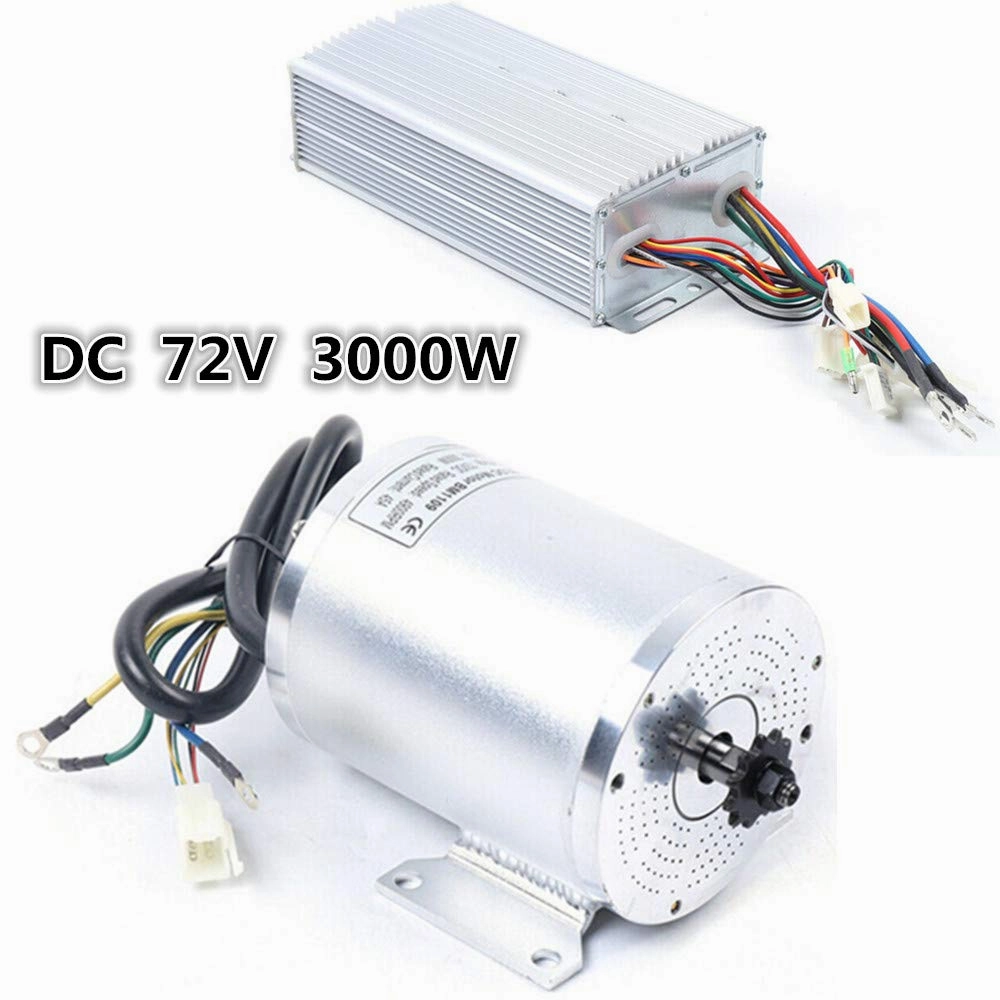

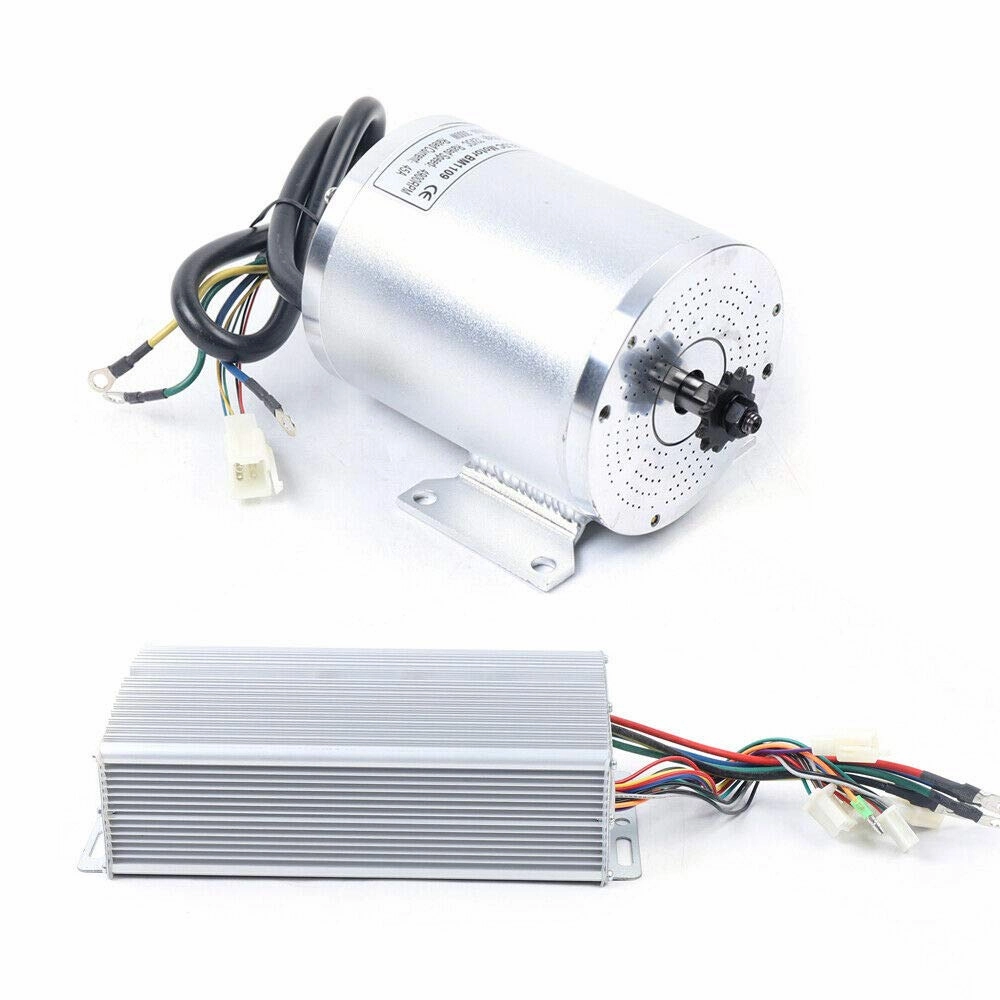

- 【MOTOR PARAMETERS】Model: MOTOR MY1020; Motor Type: High-Speed BLDC Brushless DC Electric Motor; Output: 3000W; Rated Speed: 4900-5800RPM (Max); Weight: 4.8kg/10lb; Diameter: 105mm/4''; Rated Torque: 5.4N.m; Applicable: Electric Scooter, Ebike, Folding Bike, Small E-Moto, machine, MIni Electric Car, DIY; Installation: Center, MID DRIVE; Application Chain: T8F Sprockt/Chain.
- 【CONTROLLER PARAMETERS】Power: 3000W, Voltage: 42-72V DC, Current: 60A, Mosfet: 24WF, Under Voltage turn the 1.1-3.7V, Brake Low Level.
- 【PACKAGE CONTENTS】1 x 72V 3000W Brushless Motor, 1 x 72V 3000W Brushless Controller. (Package size: 30cm x 26cm x 21cm / 12'' x 10'' x 8'', Shipping weight: 6.4kg/14lb)
- 【SUPERIOR MATERIALS】Pure copper wire core rotor, galvanized surface treatment, high-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the motor body. Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the motor are improved, extremely durable.
- 【HIGH SPEED & HIGH TORQUE】With precision winding technology, the motor power instant increased by 30%. 4900-5800RPM adjustable speed, low noise and high torque.
Specifications:
About Motor:
Model: MOTOR MY1020
Motor Type: High-Speed BLDC Brushless DC Electric Motor
Output: 3000W
Rated Speed: 4900-5800RPM (Max)
Weight: 4.8kg/10lb
Diameter: 105mm/4''
Rated Torque: 5.4N.m
Applicable: Electric Scooter, Ebike, Folding Bike, Small E-Moto, machine, MIni Electric Car, DIY
Installation: Center, MID DRIVE
Application Chain: T8F Sprockt/Chain
About Controller:
Power: 3000W
Voltage: 42-72V DC
Current: 60A
Mosfet: 24WF
Under Voltage turn the 1.1-3.7V
Brake Low Level
Package includes:
1 x 72V 3000W Brushless Motor
1 x 72V 3000W Brushless Controller
Shipment:
Package size: 30cm x 26cm x 21cm (12'' x 10'' x 8'')
Shipping weight: 6.4kg/14lb
- Product Dimensions : 10 x 8 x 6 inches; 12 Pounds
- Date First Available : June 4, 2020
- Manufacturer : LianDu-US
