- Code-compliant thermostatic control
- Adjustable temperature output between 86–120°F
- Custom temperature settings available
- Sleek design is appealing and can be mounted in plain sight
- Can be mounted with fittings pointing up or down

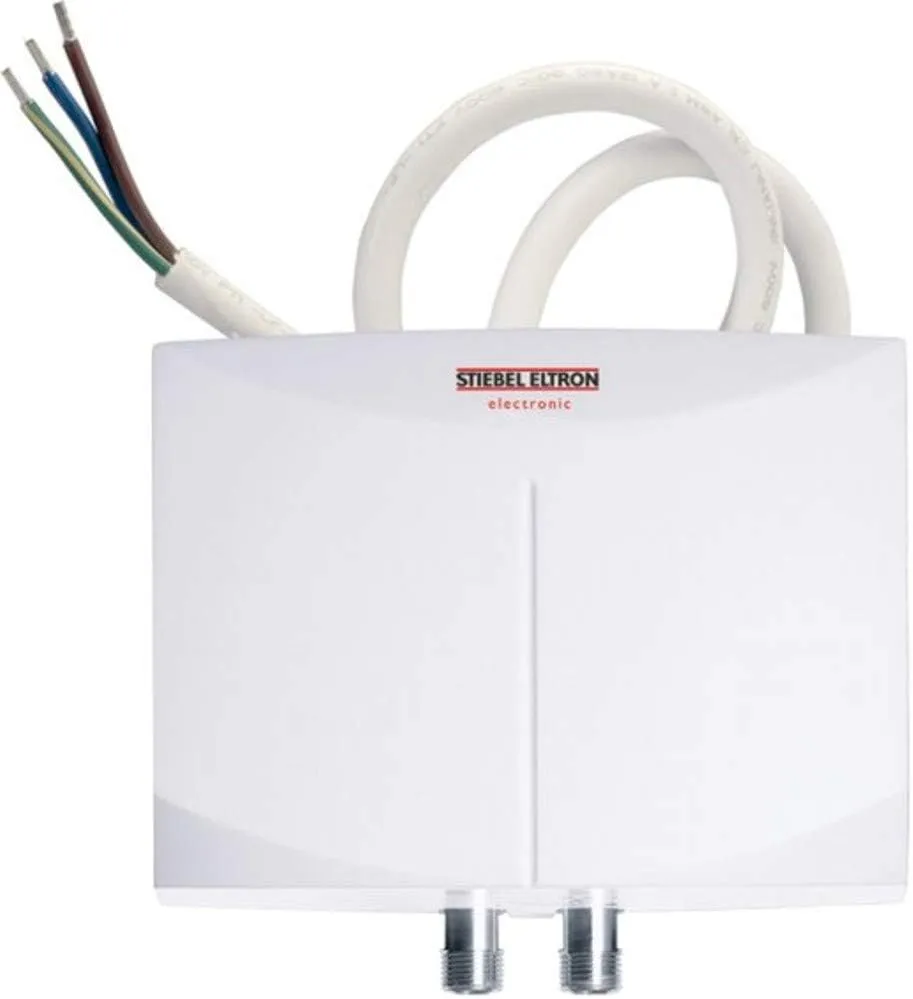

Stiebel Eltron 236010 Model Mini-E 3-1 Thermostatic Handwashing Sink Tankless Electric Water Heater, 120V, 3.0kW, 25A, 0.026 Gallon Water Volumen, 150 psi/10 BAR Working Pressure
The Stiebel Eltron Mini tankless water heaters are designed for installation at the point-of-use. The Mini heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, all Mini water heaters are equipped with a safety high-limit with manual reset. Mini-E thermostatic tankless water heaters are the new electronically controlled version of our famous Mini tankless electric water heaters for handwashing.
Key Features- Code-compliant thermostatic control
- Factory set at 100°F
- Adjustable temperature output between 86–120°F
- Custom temperature settings available
- Extremely compact design
- Pre-wired pigtail included
- Major energy savings
- Unlimited supply of hot water
- Proven reliability
- Sleek design is appealing and can be mounted in plain sight
- Can be mounted with fittings pointing up or down
- Phase - 50/60 Hz: 1
- Voltage: 120V
- Wattage: 3.0kW
- Amperage draw: 25A
- Min. recommendedcircuit breaker size: 25A (SP)
- Min. recommended wire size (copper): 10 AWG
- Min. flow to activate: 0.30 GPM 1.15 l/min
- Water temp. range: Electronic units are adjustable from 86-122°F/30-50°C
- Energy Factor: 0.99
- Water volume in unit: 0.026 gal/0.1 l
- Working pressure: 150 psi/10 BAR
- Tested to pressure: 300 psi/20 BAR
- Water connections: 3/8" O.D. flexible braided stainless steel hose connectors
- Dimensions (HxWxD): 6½" x 7½" x 3¼"
- Weight: 3.44 lb
